PE Sheath Armored GYTC8S Figure 8 Fiber Optic Cable 24 Core Optical Fiber Cable

Product Categories

Shenzhen Heng Tian Technology Co. ,Ltd

Contact Now

Name: PE Sheath Armored GYTC8S Figure 8 Fiber Optic Cable 24 Core Optical Fiber Cable
Brand: HG or OEM
Price: 1 USD

Brand Name : HG or OEM

Model Number : GYTC8S Fiber Optic Cable

Certification : ISO9001

Place of Origin : China

MOQ : 2KM

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000KM Per Day

Delivery Time : 5-7 working days

Packaging Details : 4KM/Drum

name : Armored 8 figures Fiber Optic Cable

Model NO. : GYTC8S

Sheath Material : PE

Cores : 2-288 Cores

Warranty : 10Years

Outer Jacket : Black PE

Contact Now

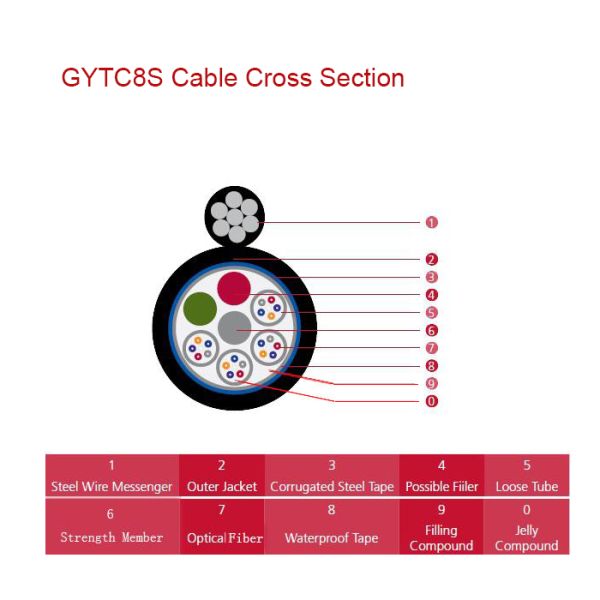

PE Sheath Armored GYTC8S Figure 8 Fiber Optic Cable 24 Core Optical Fiber Cable

Features(Armored Fiber Optic Cable):
1. Up to 288 Fiber Optic.
2. The loose tube stranding technology make the fibers have good secondary excess lenth and allow the fibers free movement in the tube. Which keeps the fiber stress-free while the cables is subjected to longitudinal stress.
3. Corrugated steel lape armored and PE outer sheath providing properity crush resistance and gun shot resistance features.
4. Stranded wires as sell supportiong member providing excellent strain performance and convenlent installation.

Fiber Specifications:

Technical parameter of ITU-T G.652D (B1.3) single-mode optical fiber
Characteristics	Conditions	Specified Values	Units
Optical Characteristics
Mode field diameter (MFD)	1310nm 1550nm	9.2±0.4 10.4±0.8	µm µm
Cut-off wavelength (λcc)		≤1260	nm
Attenuation coefficient	1310nm 1383nm 1550nm	<0.35 <0.35 <0.22	dB/km dB/km dB/km
Macro bending loss	φ75mm, 100circles, at 1550nm	≤0.1	dB
Attenuation non-uniformity		≤0.05	dB
Dispersion coefficient	1288~1339nm 1271~1360nm 1550nm	≤3.5 ≤5.3 ≤18	Ps/(nm.km) Ps/(nm.km) Ps/(nm.km)
Zero dispersion wavelength		1300~1324	nm
Max zero dispersion slope		≤0.093	Ps/(nm2.km)
Group index of refraction (typical value)	1310nm 1550nm	1.466 1.467
Geometric characteristic
Cladding diameter		125.0±1.0	µm
Core/cladding concentricity error		≤0.8	µm
Cladding non-circularity		≤1.0	%
Coating diameter		245.0±10	µm
Cladding/coating concentricity error		≤12.0	µm
Coating non-circularity		≤8	%
Diameter of colored coating		250.0±15	µm
Mechanical characteristic
Curling (radius)		≥4	m
Proof stress		>0.69	Gpa
Coating strip force	Average value Peak value	1.0-5.0 1.3-8.9	N N
Dynamic stress corrosion susceptibility parameter (nd value)		≥20
